Hot Sale Pediatric Spinal Titanium Alloy Intramedullary Elastic Nails CE Certified Medical Children Hospital Application

Products Description

Product name	Model	Material	Specification	Code
Elastic Nail Intramedullary Nail	SNXS	Titanium Alloy	2.5×440	15902940

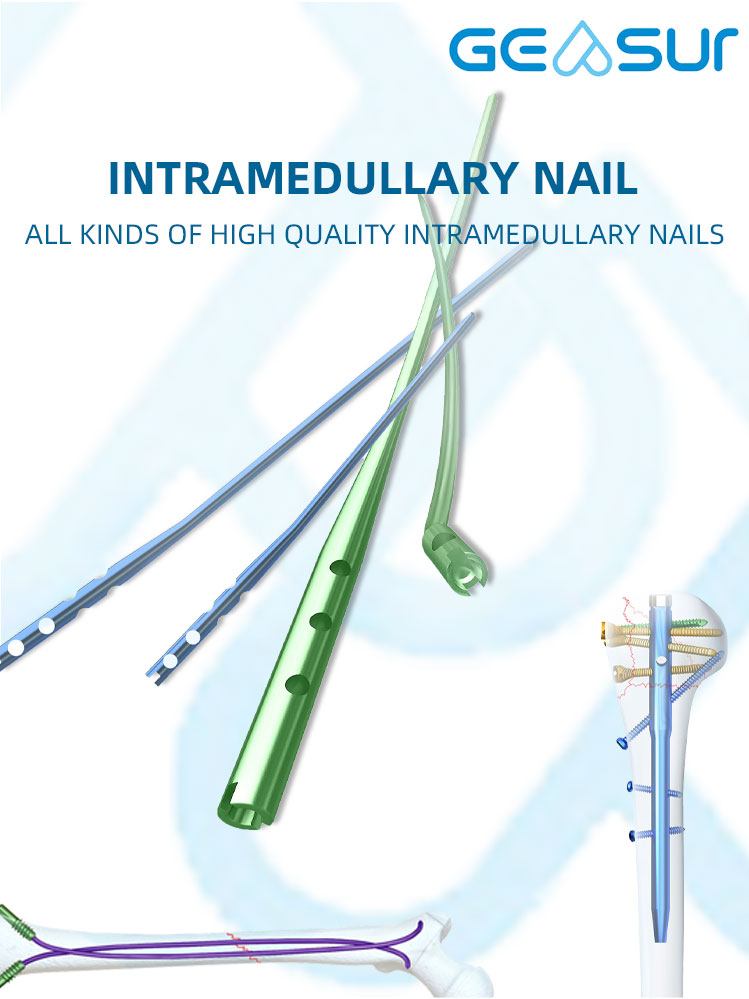

Intramedullary Nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.

Product name	Model	Specification	Material	Code
Proximal Femoral Nail Antirotation Intramedullary Nail	SGM-IIK	9.0×170×130°	Titanium Alloy	15649170
Proximal Femoral Nail Antirotation Intramedullary Nail	SGM-IIK	9.0×200×130°	Titanium Alloy	15649200
Proximal Femoral Nail Antirotation Intramedullary Nail	SGM-IIK	9.0×240×130°	Titanium Alloy	15649240
Proximal Femoral Nail Antirotation End Cap	SGM-IIK	10×15	Titanium Alloy	15601115
Proximal Femoral Nail Antirotation End Cap	SGM-IIK	10×20	Titanium Alloy	15601120
Proximal Femoral Nail Antirotation Blade	SGM-IIK	10.5×70	Titanium Alloy	15600570
Proximal Femoral Nail Antirotation Blade	SGM-IIK	10.5×80	Titanium Alloy	15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw	SGM-IIK	4.9×30--72	Titanium Alloy	15604930
Femoral Nail locking screw I	SGG-IIIK	6.5×75	Titanium Alloy	15246575
Femoral Nail Intramedullary Nail	SGG-IIIK	9.0-13.0	Titanium Alloy	15249340
Humeral nail Intramedullary Nail	SHG-IK	8	Titanium Alloy	15728160

Our Advantages

1. 1.0m radian radius: The length is consistent with the anatomy of the FEMORAL medullary cavity.

2. Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

3. Specification details: Short nail: diameter of 8.0/9.5mm, length of 160mm. Long nail: diameter of 7.0/8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.

Details Images

Proximal fixation:

Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.

Distal fixation:

Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.

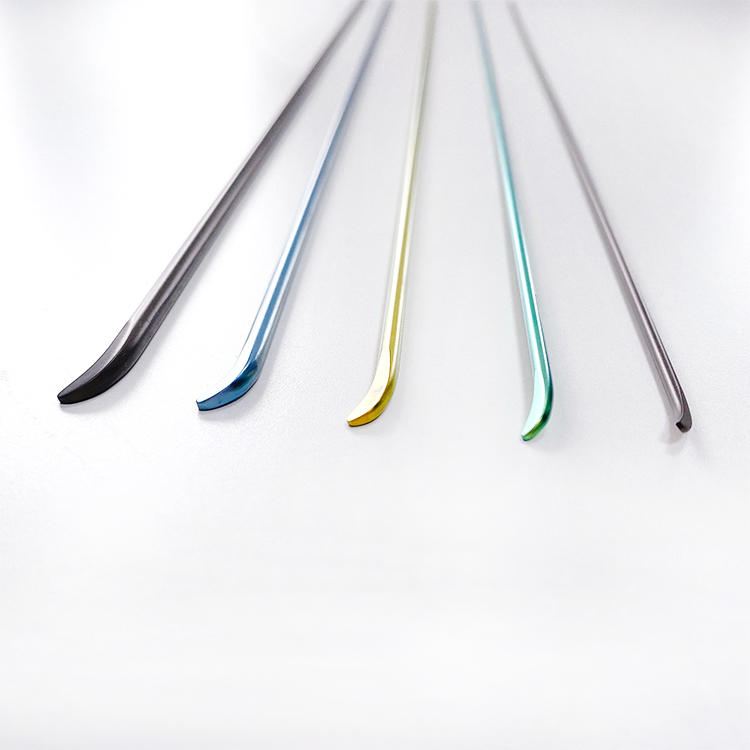

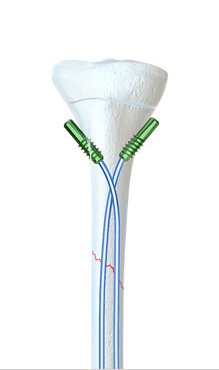

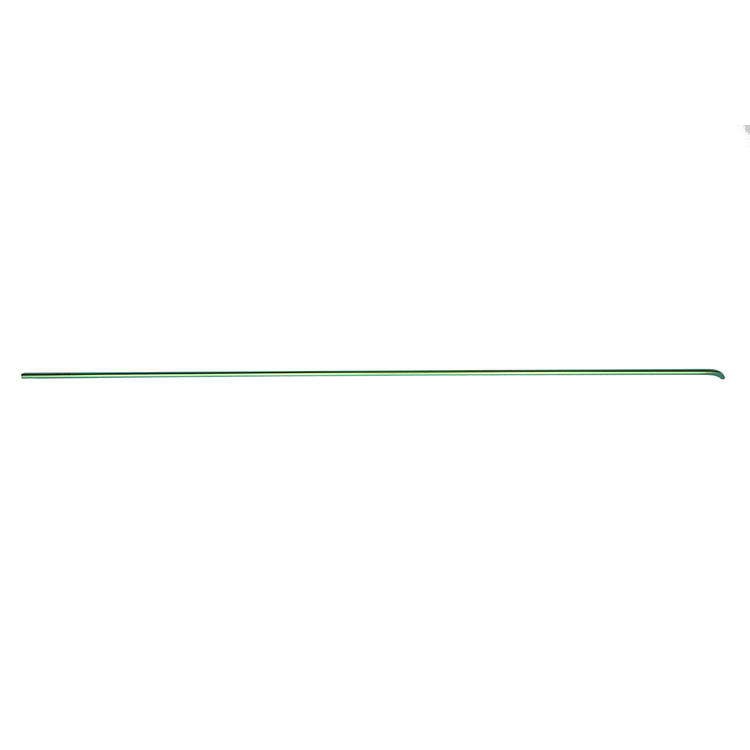

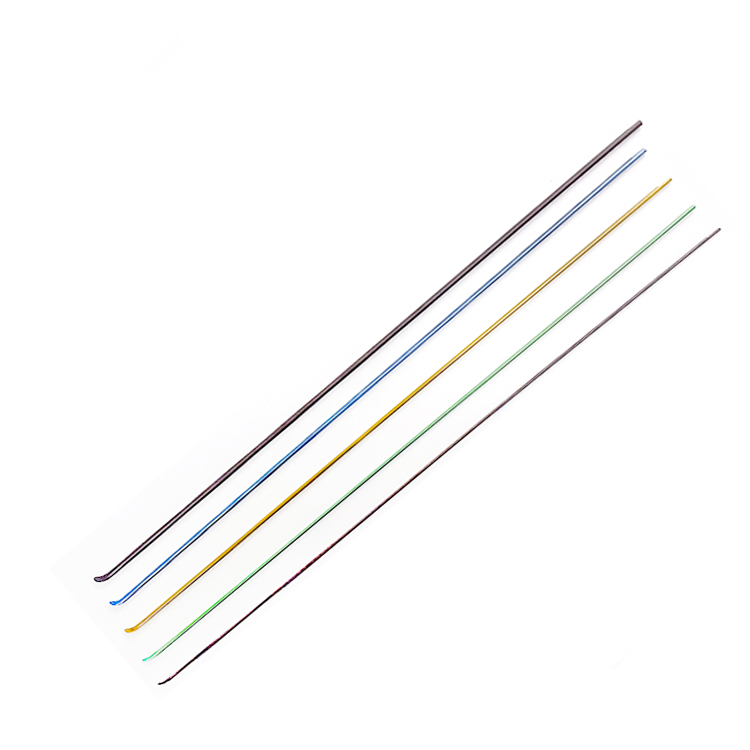

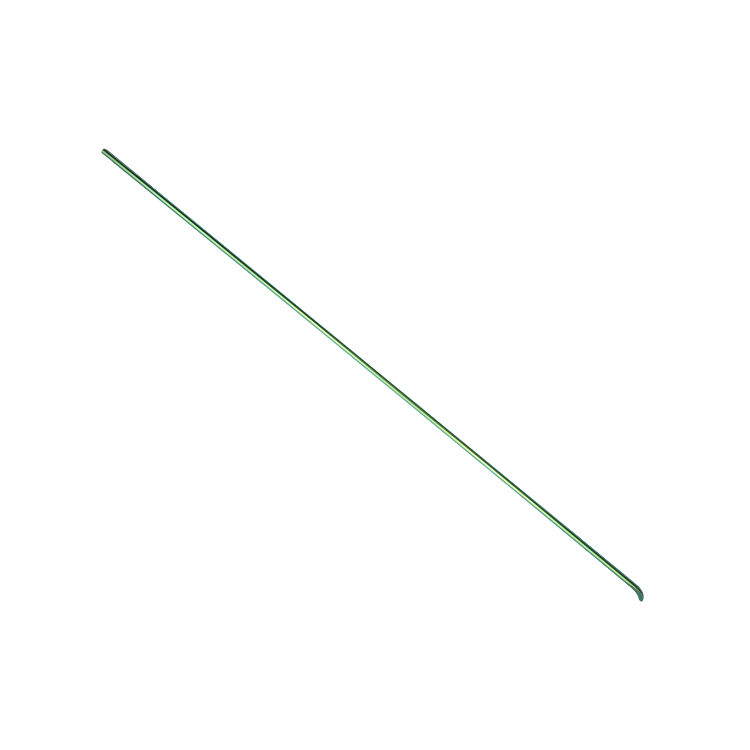

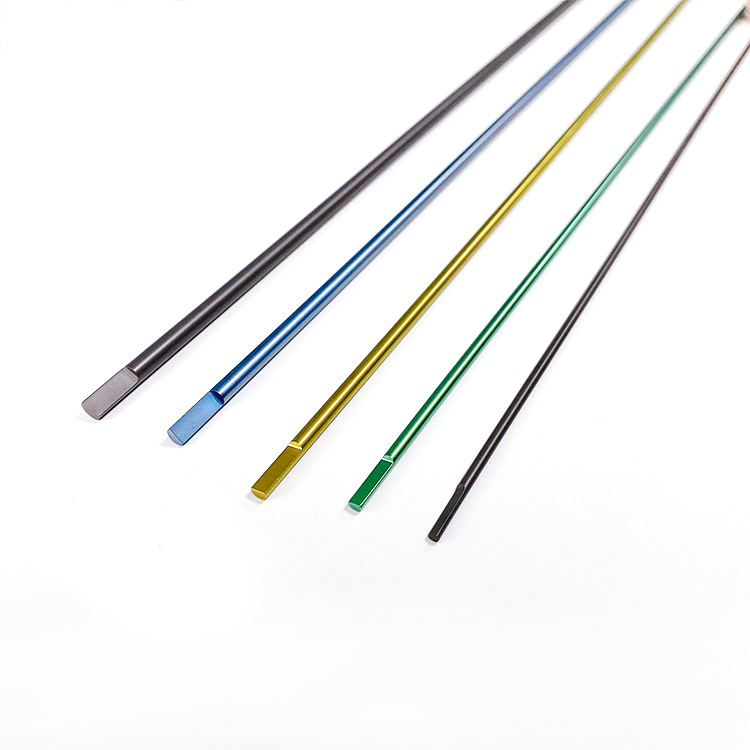

Elastic Nail:

Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.

Compression:

Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.

TFNA System TFNA:

Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.

Why Choose Us

Frequently Asked Questions

Would you please give some information on shipping mode and charges?

Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.

Do you have ISO9001, ISO 13485, CE approvals?

Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.

What is the minimum order that we can place? Do you provide free samples?

We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.

Can I buy products not shown but similar to your catalogue?

Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.

Do you have stock for listed products, or they are newly produced? What are your terms of payment?

Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
