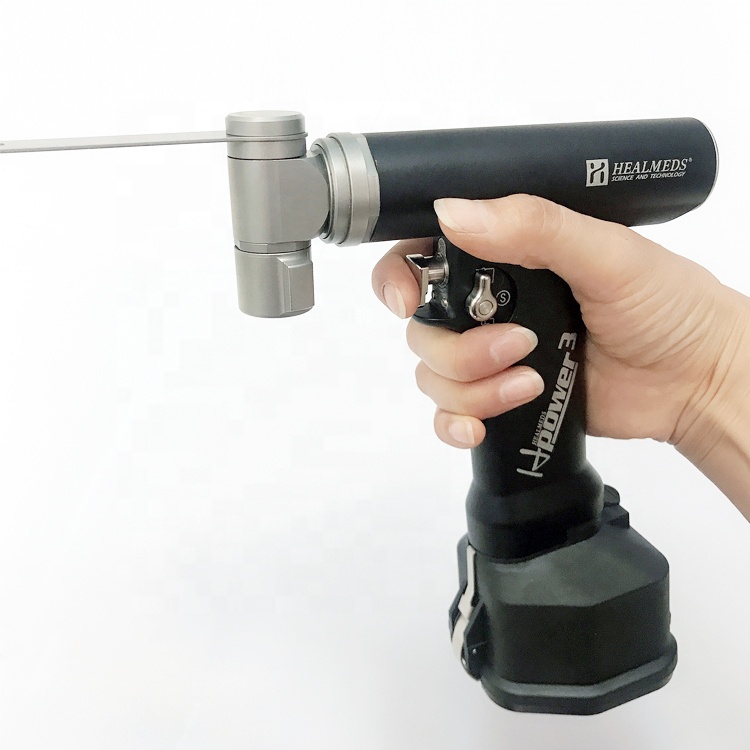

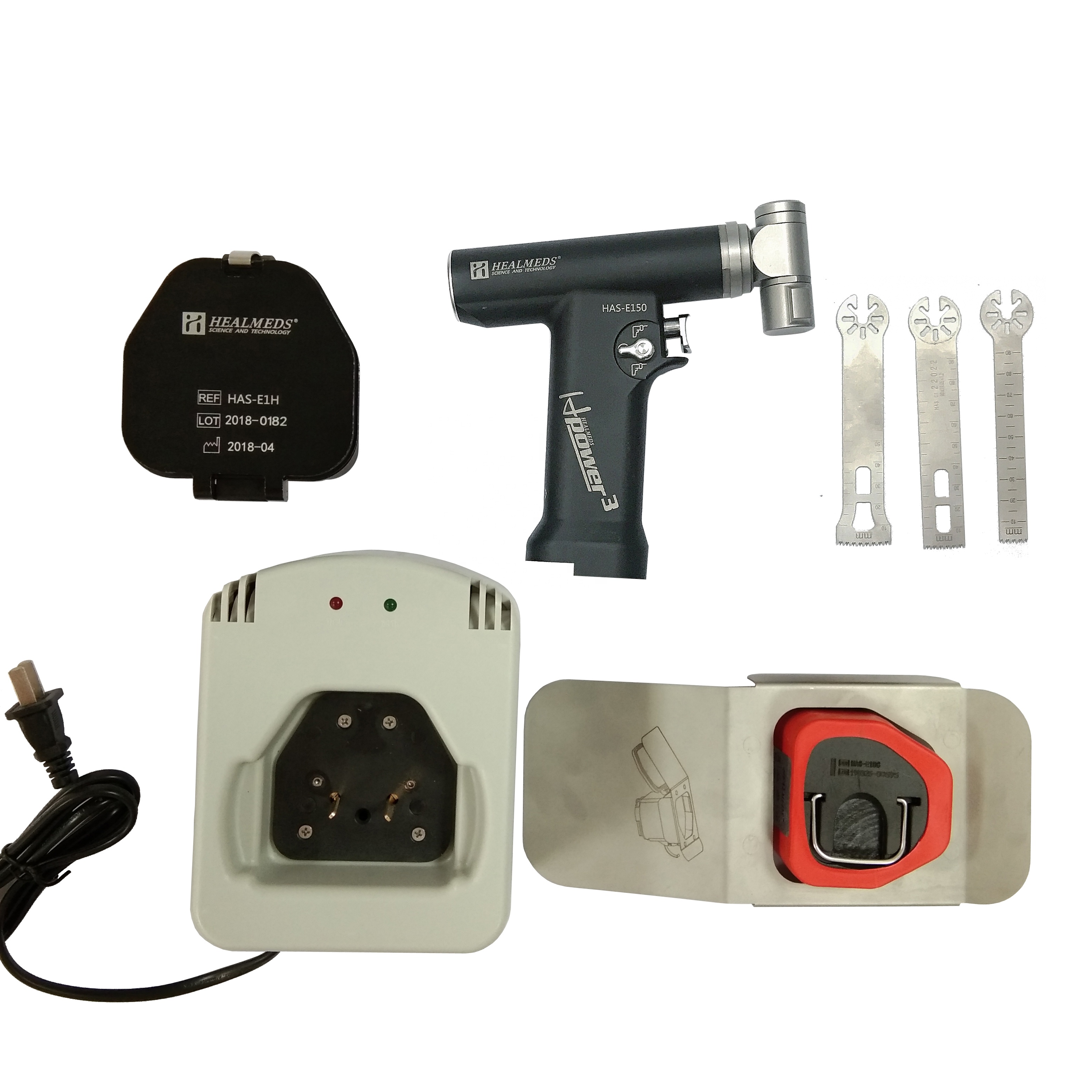

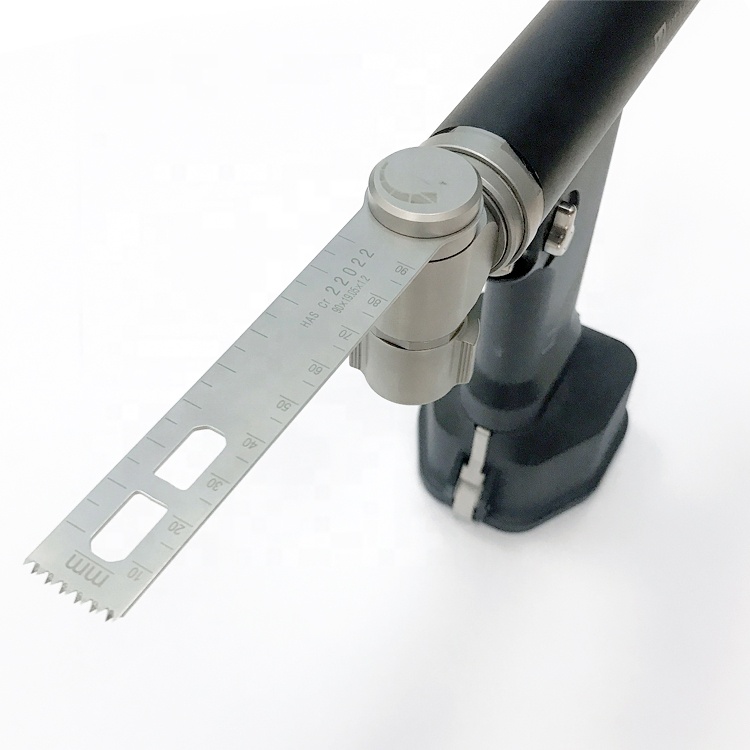

Orthopedic Surgical Instrument Brushless Motor Bone Oscillating Saw for Pet

Product Description

Product Description

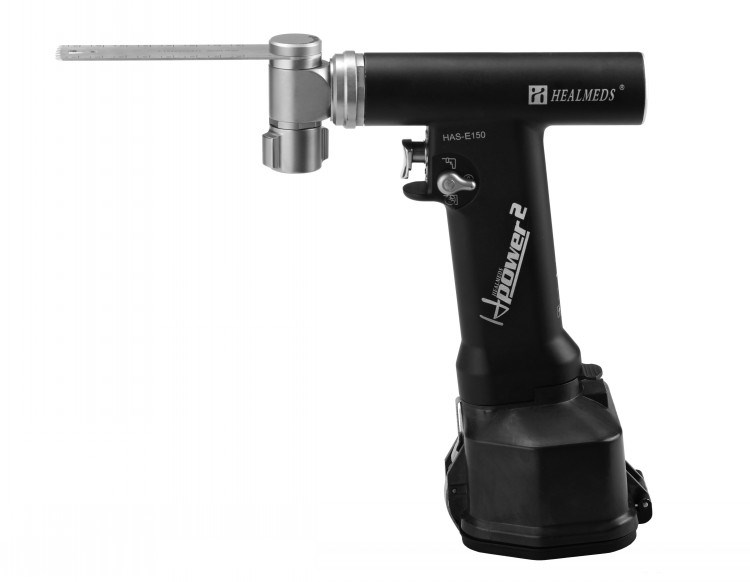

Product Image 1
Product Image 2

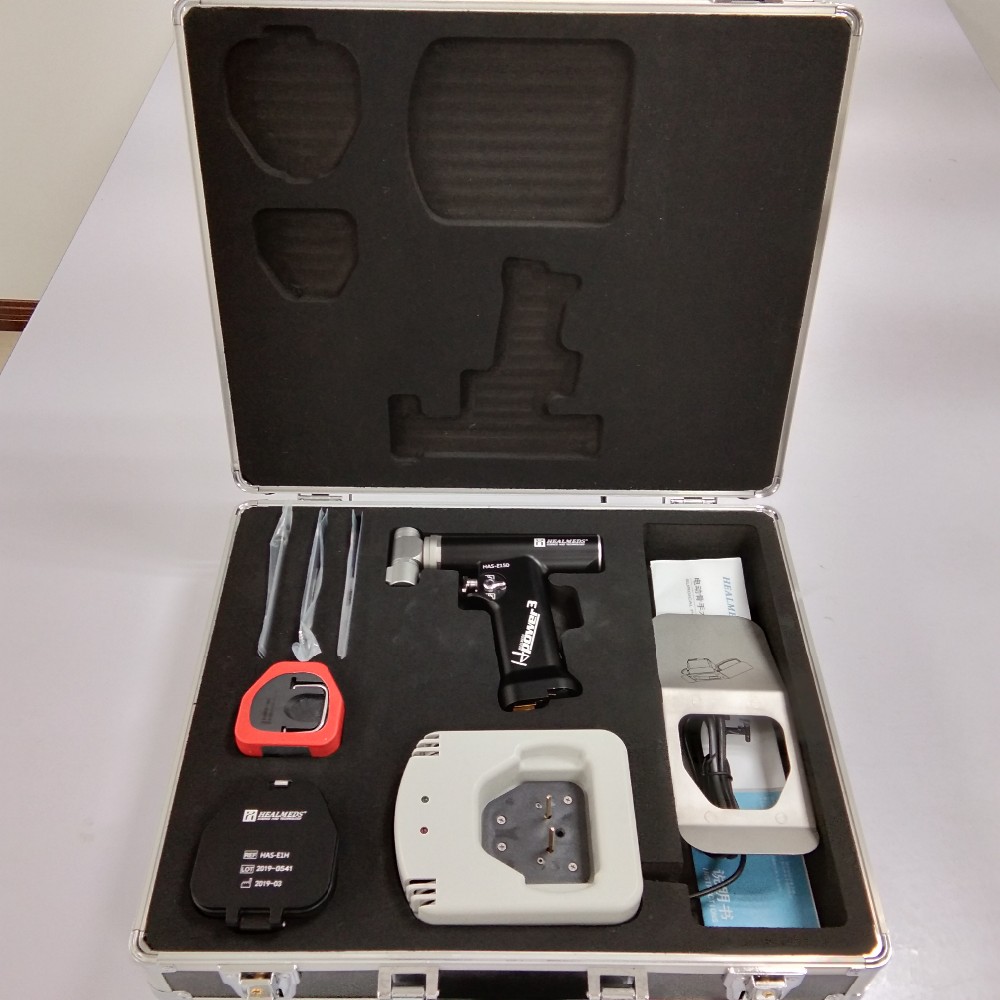

Product Image 3
Specification
NO. Item Value
1 Oscillations 11000cpm
2 Swing ≥4.5°
3 Noise ≤75dB
4 Sterilization temperature 135°C
5 Operation voltage 9.6V
6 Battery capacity 2100mAh
NOTE:
  1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ), if the temperature is over 135 °C, the motor will be damaged.
  2. Normal bone drill can only hold drill bits less than 6 mm, reaming drill with big torque, rpm is around 300, hollow drill is used with nail or K wire, rpm is around 600.
  3. The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
  4. The battery cannot be sterilized, it is not resistant to high temperatures.
  5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
  6. The battery space in the hand piece of the tool should not have any water, after sterilization.
  7. The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be worn-out, we suggest each blade only use for 1 surgery.
Recommend Products
Certification
Certification
Company Profile
Company Image 1
Company Image 2
Exhibition
Exhibition
FAQ
FAQ Overview
Q What is the maximum sterilization temperature for this orthopedic bone drill?
The standard sterilization temperature should not exceed 135°C (Improved types can withstand up to 155°C). Exceeding this limit will cause permanent damage to the motor.
Q Can the battery be sterilized along with the main tool?
No. The battery is not resistant to high temperatures and cannot be sterilized. It must be removed from the handpiece before sterilization.
Q How should the battery be stored when the tool is not in use?
The battery must be taken out of the power tool immediately after surgery. Keeping it inside will cause a slow automatic discharge, which significantly shortens the overall battery life.
Q How many times can the cranial bur blade be used?
The blade is made of medical stainless steel. To maintain flexibility and prevent breakage, it is not hardened excessively. Consequently, it wears out easily, and we recommend using each blade for only one surgery.
Q What are the cleaning and maintenance guidelines for the cranial bur?
The cranial bur must be cleaned with a purger immediately after the procedure to prevent blood from sticking. It must be thoroughly dried. Additionally, ensure the battery compartment in the handpiece remains completely dry after sterilization.
