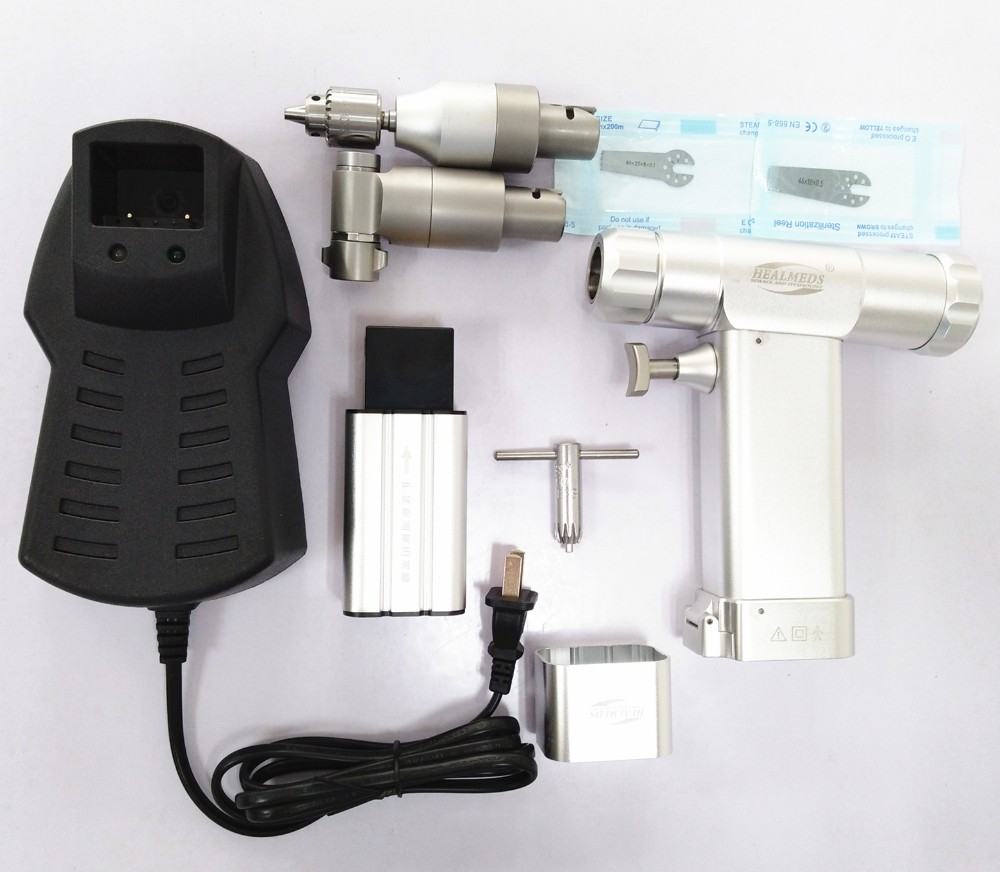

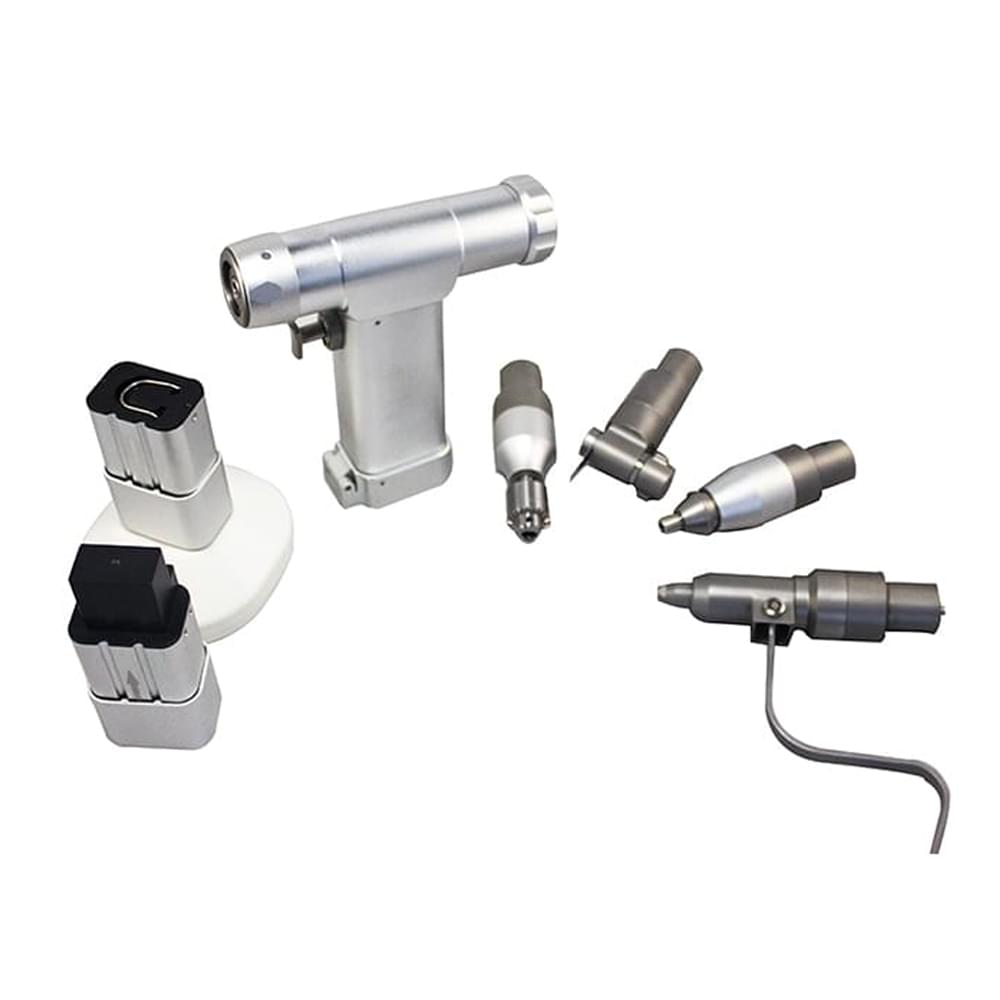

Product Accessories & Specifications
| No. |
Accessory |
Qty. |
Note |
| 1 |

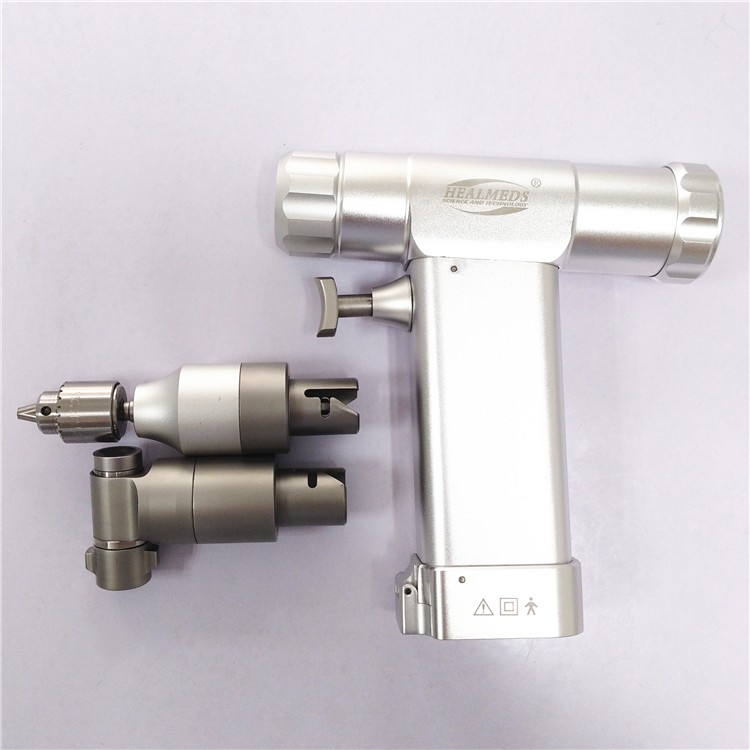

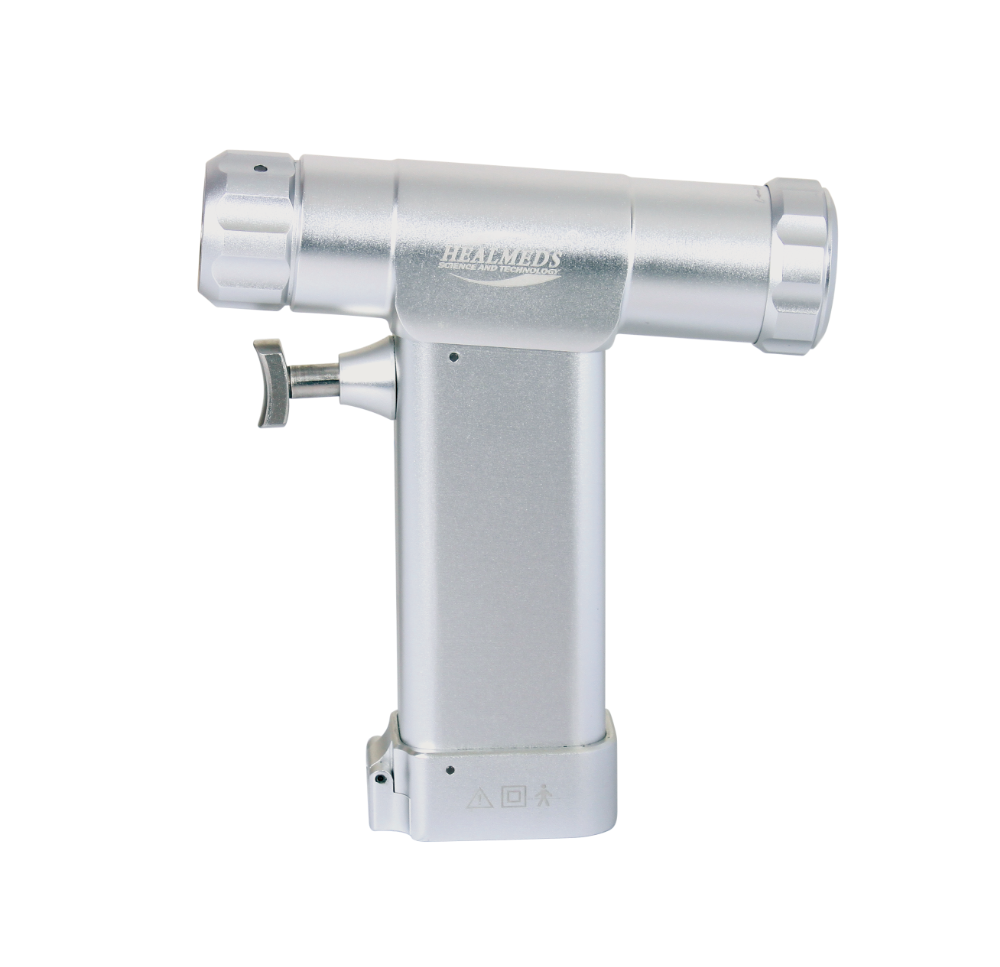

Handpiece |
1 |
1.02kg, can be connected with several adapters, autoclavable up to 135℃ |
| 2 |

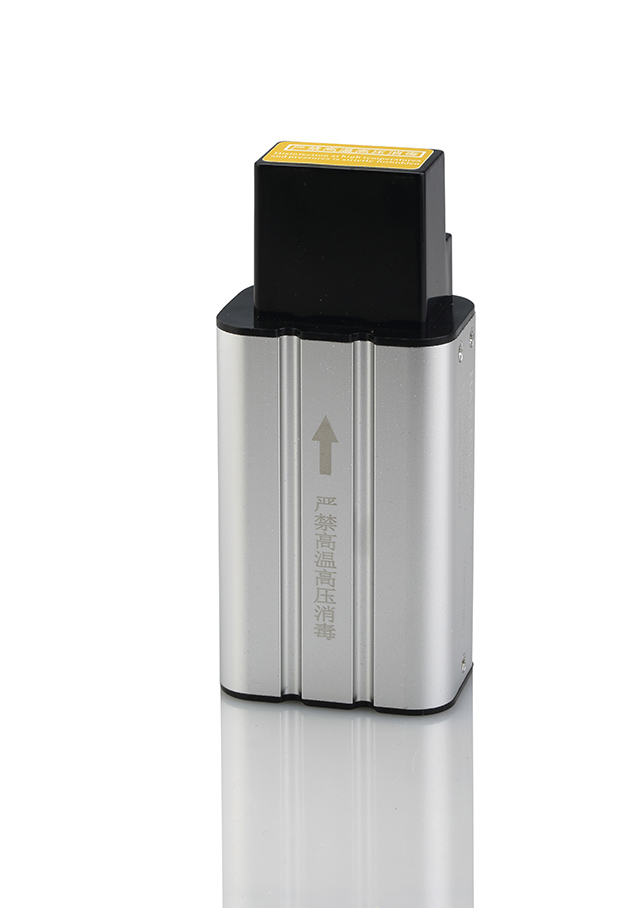

Battery |
2 |
could not be sterilized, could last for 30 minutes after fully charged |
| 3 |
Charger |
1 |
110-220V, match both European & American type |
| 4 |

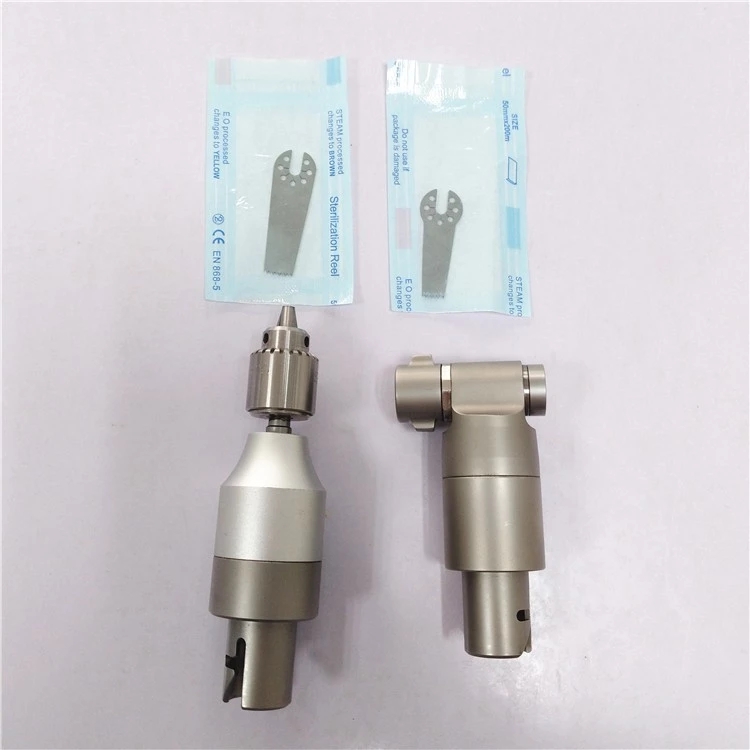

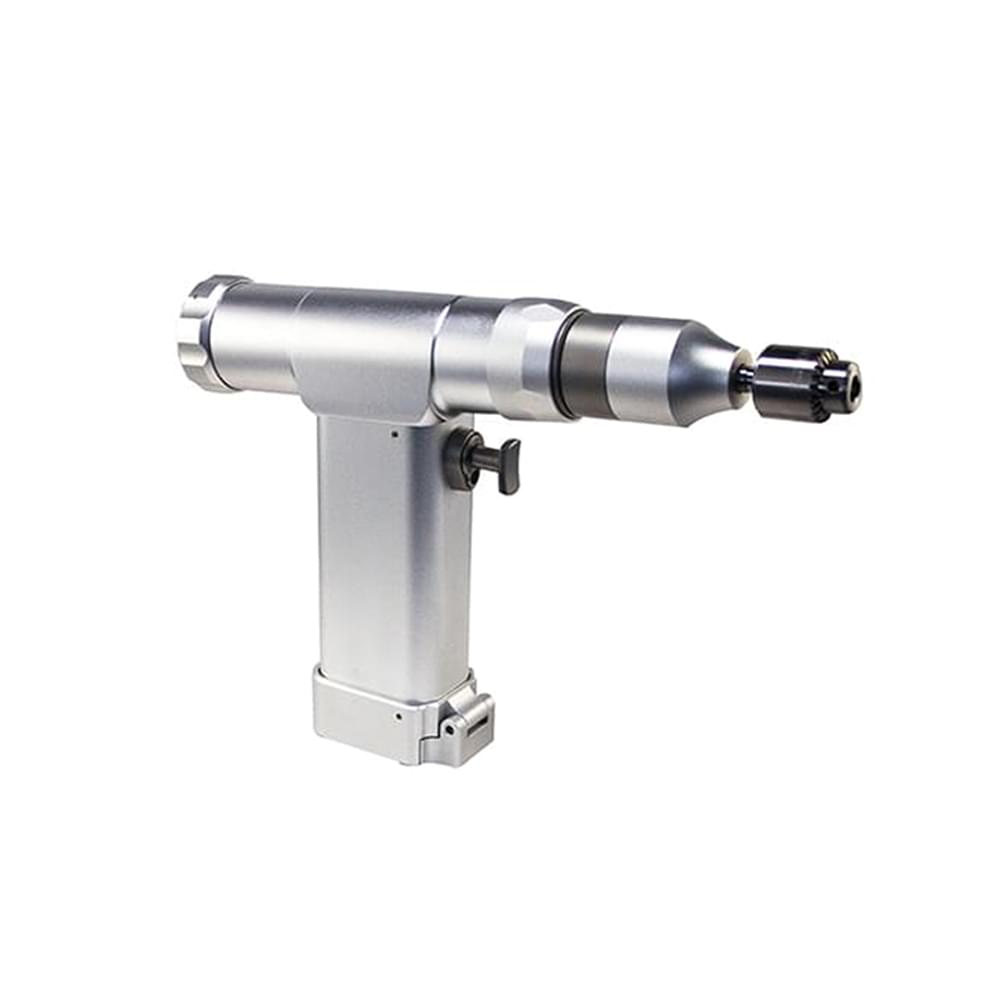

Drill chuck |
1 |
imported, high Coaxiality, suitable for trauma surgeries |
| 5 |
Oscillating Saw |
1 |
used for joint surgeries |
| 6 |
Blade |
2 |
7 stars blades with optional sizes |
| 7 |

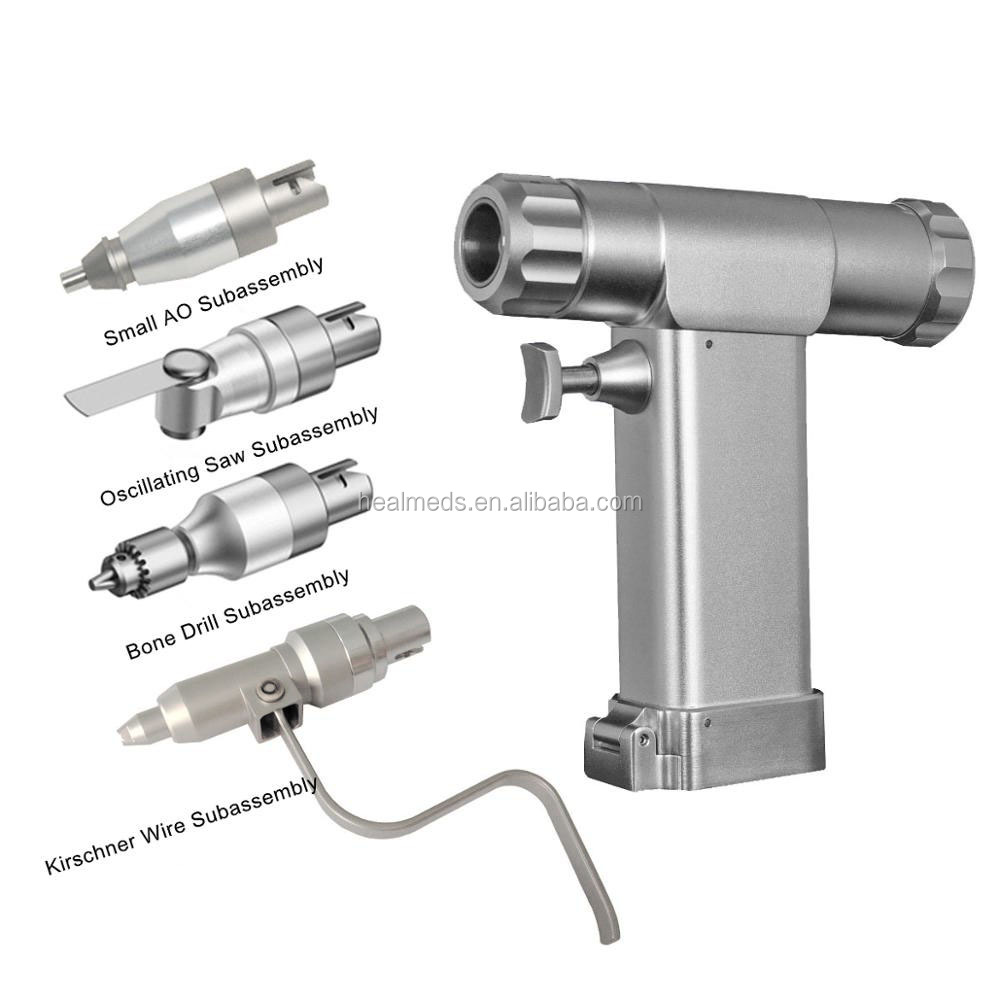

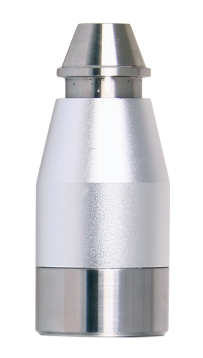

Small AO |
1 |
trauma surgery for AO Type, it's for drilling holes and fixing the plates |
| 8 |
K-Wire |
1 |
Holding K-wire very conveniently |
| 9 |
Sterilizing channel |
1 |
could be sterilized |
| 10 |
Aluminum case |
1 |
445*270*150mm, Weight: 6kg |
*Price range is just for reference. It depends on client's choices for attachments.
Warranty Policy
Warranty for the whole machine is 1 year, for the motor is 2 years, and for the battery and other fast consumption items is 3 months.
Frequently Asked Questions (FAQ)
What is the sterilization limit for the HAS-B100 power tools?
The standard sterilization temperature should not exceed 135 °C. However, the improved model can withstand sterilization temperatures up to 155 °C. Exceeding these limits can cause damage to the internal motor.
Can the battery pack be sterilized in an autoclave?
No, the battery pack is not autoclavable and cannot be sterilized. Please ensure the battery is removed from the handpiece prior to placing the tool in a sterilization chamber.
How long does the battery last on a full charge?
With a battery capacity of 1400mAh, the system can continuously run for approximately 30 minutes once fully charged.
What are the recommended drill sizes and rotational speeds?
The standard bone drill holds bits smaller than 6mm. The acetabulum reaming drill runs at around 300 rpm for high torque operations, and the cannulated drill operates at about 600 rpm when used with nails or K-wires.
What is the warranty coverage for the HAS-B100 system?
We provide a 1-year warranty for the complete machine, a 2-year warranty for the motor, and a 3-month warranty for the battery as well as other fast-consumption elements.
How should the cranial bur blades be maintained?
The cranial bur blade is made of medical-grade stainless steel which is designed to be flexible rather than overly rigid. Because it is prone to wear, we suggest replacing the blade after each surgical procedure. Always clean and dry the bur immediately after surgery to prevent blood buildup.
