Geasure Orthopedic Titanium Intramedullary Nail Multi-Lock Interlocking Humeral Nail Implants & Interventional Materials Product

Product Description

Intramedullary Nail Detail 1
Intramedullary Nail Detail 2

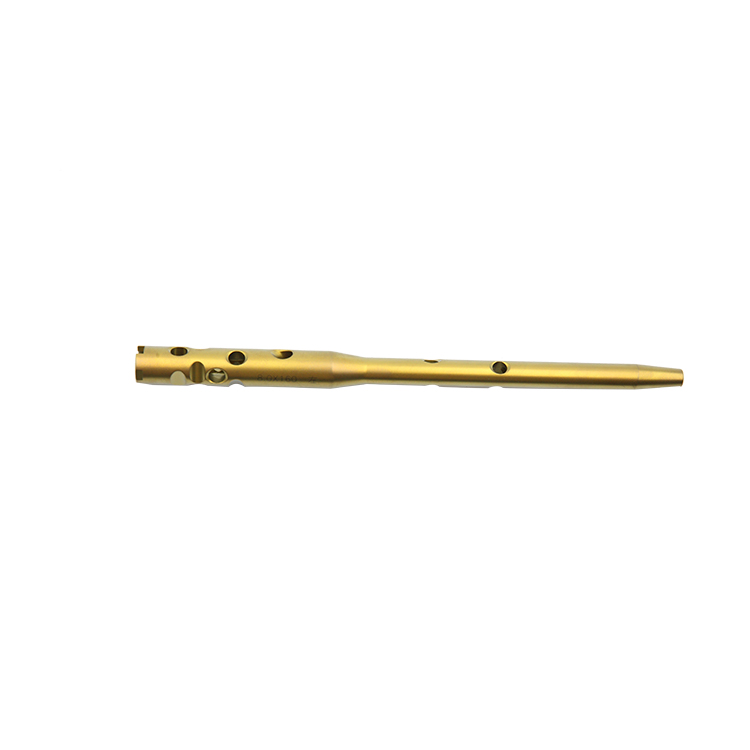

Intramedullary Nail Detail 3
Product name Model Material Specification Code
Humeral nail Intramedullary Nail SHG-IK Titanium Alloy 8 15728160
Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Key Features & Design
1.0m radian radius design
Screw-in-screw design
Nail Specifications
1. 1.0m Radian Radius
The length is consistent with the anatomy of the FEMORAL medullary cavity.
2. Screw-in-screw Design
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

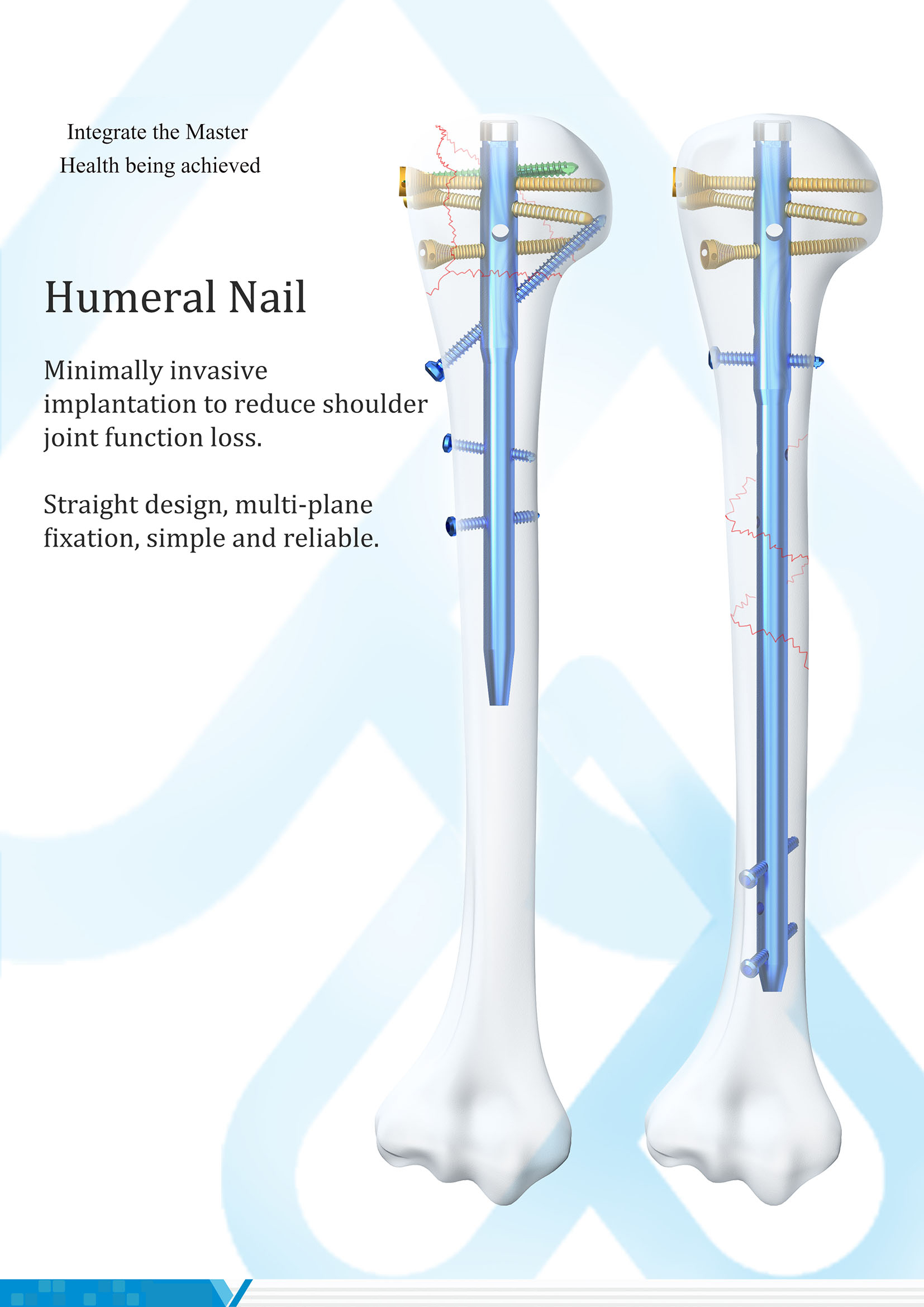

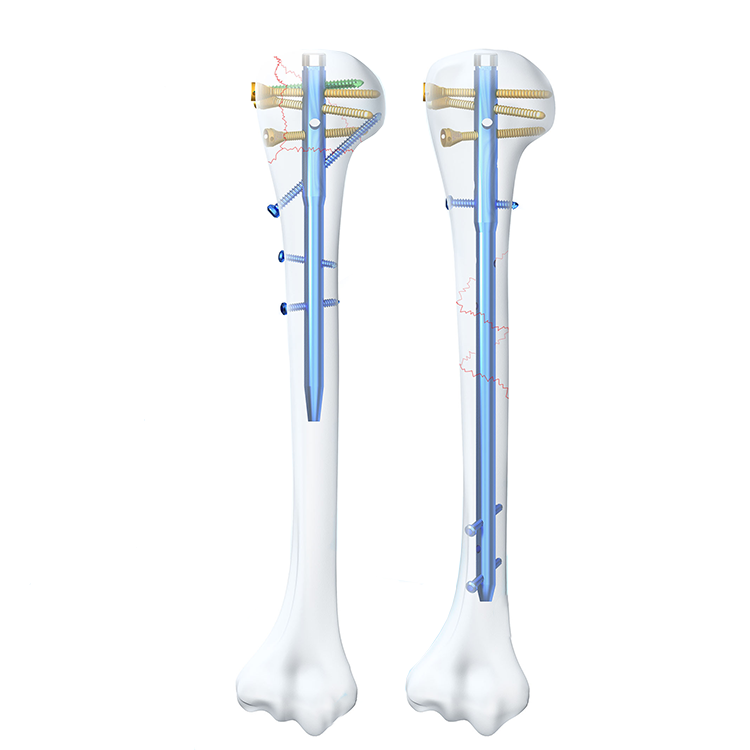

3. Dual Nail Type Adaptability
Short nail: diameter of 8.0/9.5mm, length of 160mm. Long nail: diameter of 7.0/8.5mm, length of 180-315mm (15mm interval). All nails have left and right types, made of titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Detailed Specifications

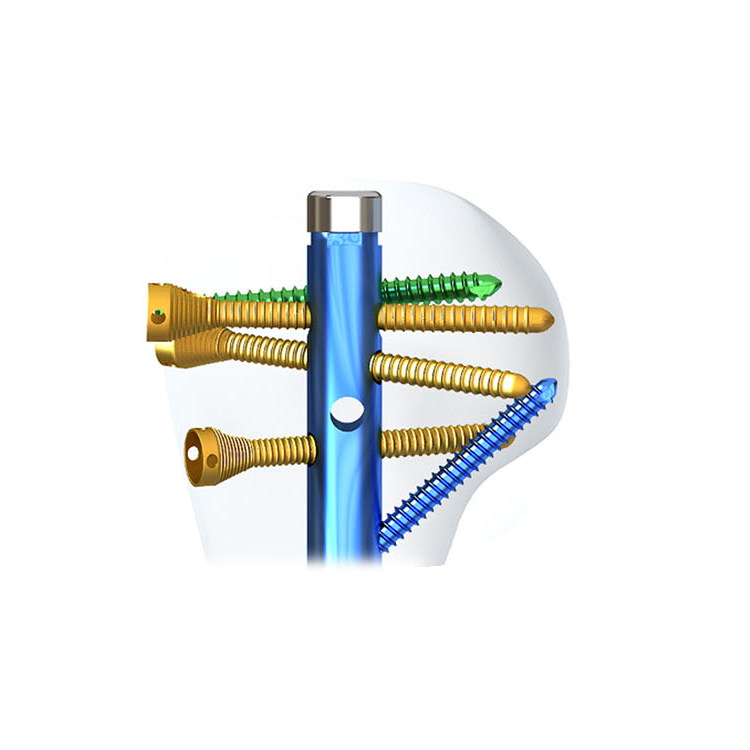

Proximal fixation mechanism
Proximal Fixation
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.

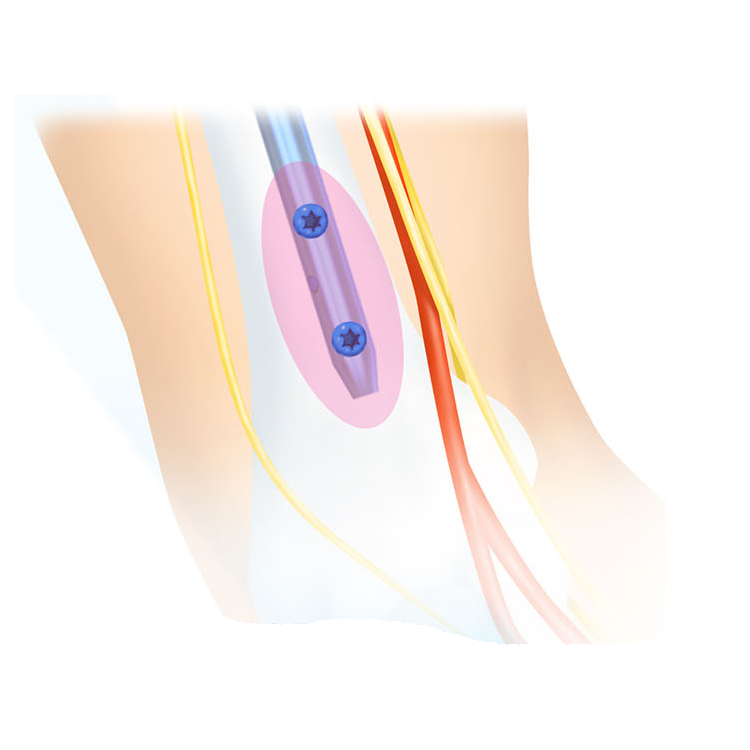

Distal fixation mechanism
Distal Fixation
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Compression design
Compression Mechanism
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System
TFNA System
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
Orthopedic Medical Devices
Orthopedic Implants Showcase 1
Orthopedic Implants Showcase 2
Manufacturing Facility
Production Facility Area 1
Testing and Lab Area
Warehouse and Shipping Area
Frequently Asked Questions
Q: Would you please give some information on shipping mode and charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.
Q: Do you have ISO9001, ISO 13485, CE approvals?
Yes, our products are manufactured under strict compliance with ISO9001 and ISO 13485 quality management system standards to ensure the highest medical safety.
Q: What is the minimum order that we can place? Do you provide free samples?
We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning in order to test market our products. We can offer free samples, but do not pay the cost of freight.
Q: Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Q: Do you have stock for listed products, or are they newly produced? What are your terms of payment?
Generally, we have stock for listed products, which are produced monthly. However, it depends on sales conditions. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. Payment methods include L/C, T/T, Western Union, PayPal, etc.
Q: What are the main material characteristics of your intramedullary nails?
All our intramedullary nails are made of high-quality medical Titanium Alloy. This material provides exceptional biomechanical strength, high biocompatibility, and lowers the risk of outer wall impact and main nail inward movement.
